Table of UnitPositions in buildings.json

JSON

Table of UnitPositions:

Value	Type	Description	Example/Link
unitTypeId	integer	bot/unit	BotUnitModIDs
isInitial	boolean	bot printed on placement vs completion	"true"
homeLayerOffset	array	location, with sub and rotation of "home"	{"coord": {"x": -1,"y": 1},"subX": -0.3,"subY": 0.0,"rotationY": 0.0}
workLayerOffset	array	location, with sub and rotation of "work"	{"coord": {"x": -1,"y": 1},"subX": -0.3,"subY": 0.0,"rotationY": 0.0}
homeLayerOffsetDict	array	Level-specific location of "home"	see Watchtower
workLayerOffsetDict	array	Level-specific location of "work"	see Watchtower

VISUAL

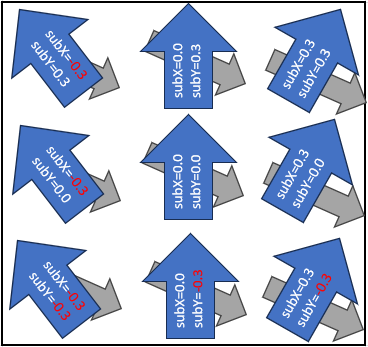

This visual will show the starting position (blue arrow) and the idle position after first production run (grey arrow).
